Installation of a cassette roller blind on a window sash

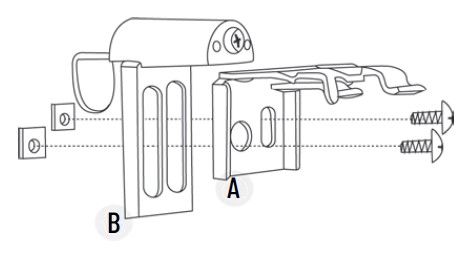

1. Using the screws and rectangular nuts, attach the blind brackets (A) to the window frame brackets (B). If the window is fitted with an air vent, position elements (A) as close as possible to elements (B).

2. Place the assembled brackets onto the window sash frame.

3. Carefully tighten the bracket to the window frame using a screwdriver.

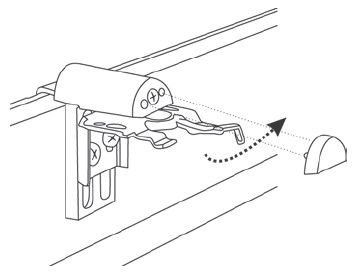

4. Fit the flexible cover cap.

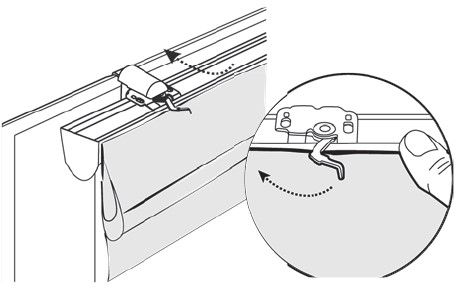

5. Place the blind cassette from above so that the rail slides behind the teeth of the blind bracket. Lock the catch by gently pressing it towards the window.

CHAIN TENSIONER INSTALLATION

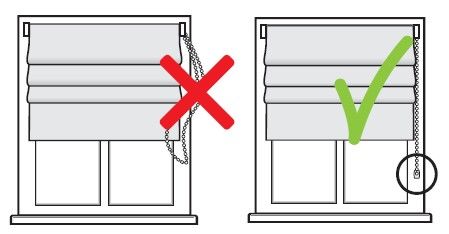

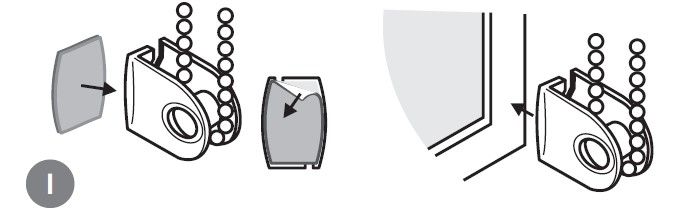

To prevent the chain from hanging loosely next to the window, it is recommended to install the chain tensioner included in the set. Installation using screws (H) or adhesive tape (I).

WARNING!

Risk of strangulation!

Keep cords and chain loops out of reach of small children!

The packaging contains small parts!

Small parts may be swallowed and cause choking hazards for children!
