Measuring a blind mounted on a window sash

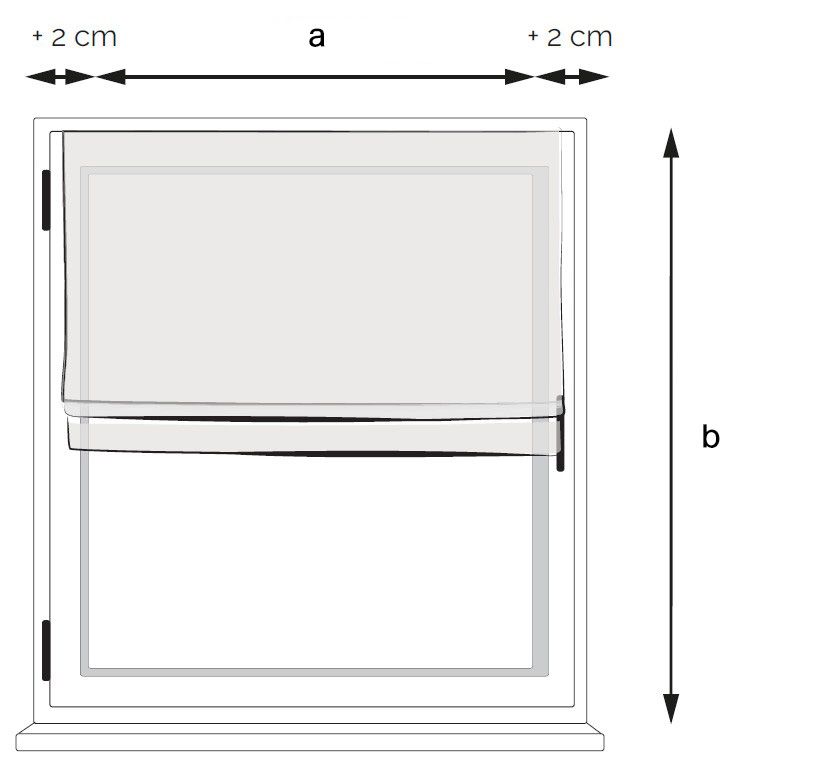

STANDARD BRACKET

Add 2 cm to each side of the glass width to obtain the correct blind width.

Using the supplied screws or wall plugs, attach the plastic brackets (from 2 to 5 depending on the blind width) to the wall (fig. A) or ceiling (fig. B) at the same height and equal spacing, taking into account the position of additional components on the rail (locking mechanism and cord guides).

The blind height is the height of the window sash.

a = glass width

b = window sash height

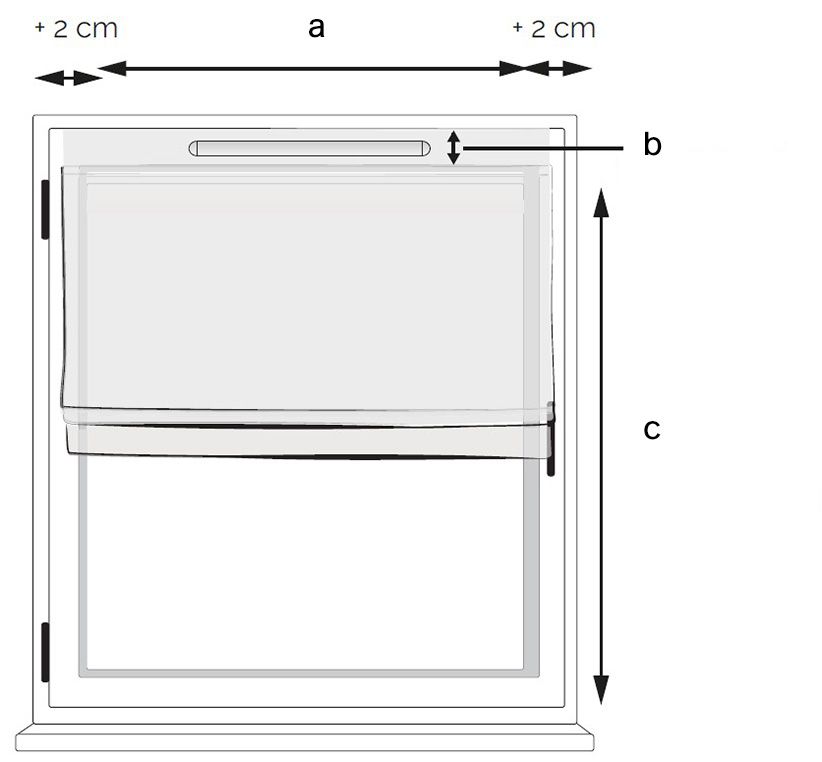

BRACKET FOR A WINDOW WITH A VENT

Add 2 cm to each side of the glass width to obtain the correct blind width.

Blind height: subtract the height of the vent from the height of the window sash.

The bracket allows height adjustment.

a = glass width

b = vent height

c = window sash height – vent height
